MACHANICAL:
DURABILITY:750CYCLES/MIN,12.5MM/MINUTE
INSERTION FORCE:2.2KGF MAX
RETENTION STRENGTH : 7.7KG.F BETWEEN JACK AND PLUG.
OPERATING TEMPERATURE:-40℃～+85℃
STORAGE TEMPERATURE:-40℃～+85℃.

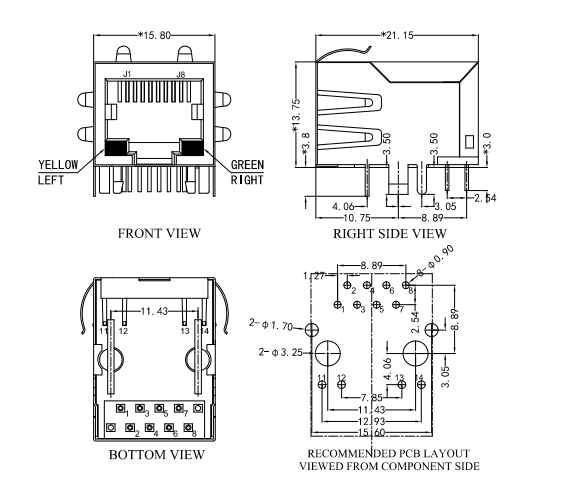

ALL CRITICAL DIMENSIONS WITH " *"
ELECTRICAL:
VOLTAGE:125 VOLTS AC.
CURRENT RATING:1.5AMP
DIELECTRIC STRENGTH: 1000 VAC RMS 50HZ OR 60HZ.1MIN.
INSULATION RESISTANCE: 500 MEGA OHMS MIN.INITIAL
AFTER 500V DC FOR 1 MINUTE
CONTACT RESISTANCE: SINGLE TERMINAL 30 MILLIOHMS MAX.
INITIAL 50 MILLIOHMS MAX.AFTER DURABILITY TEST.
