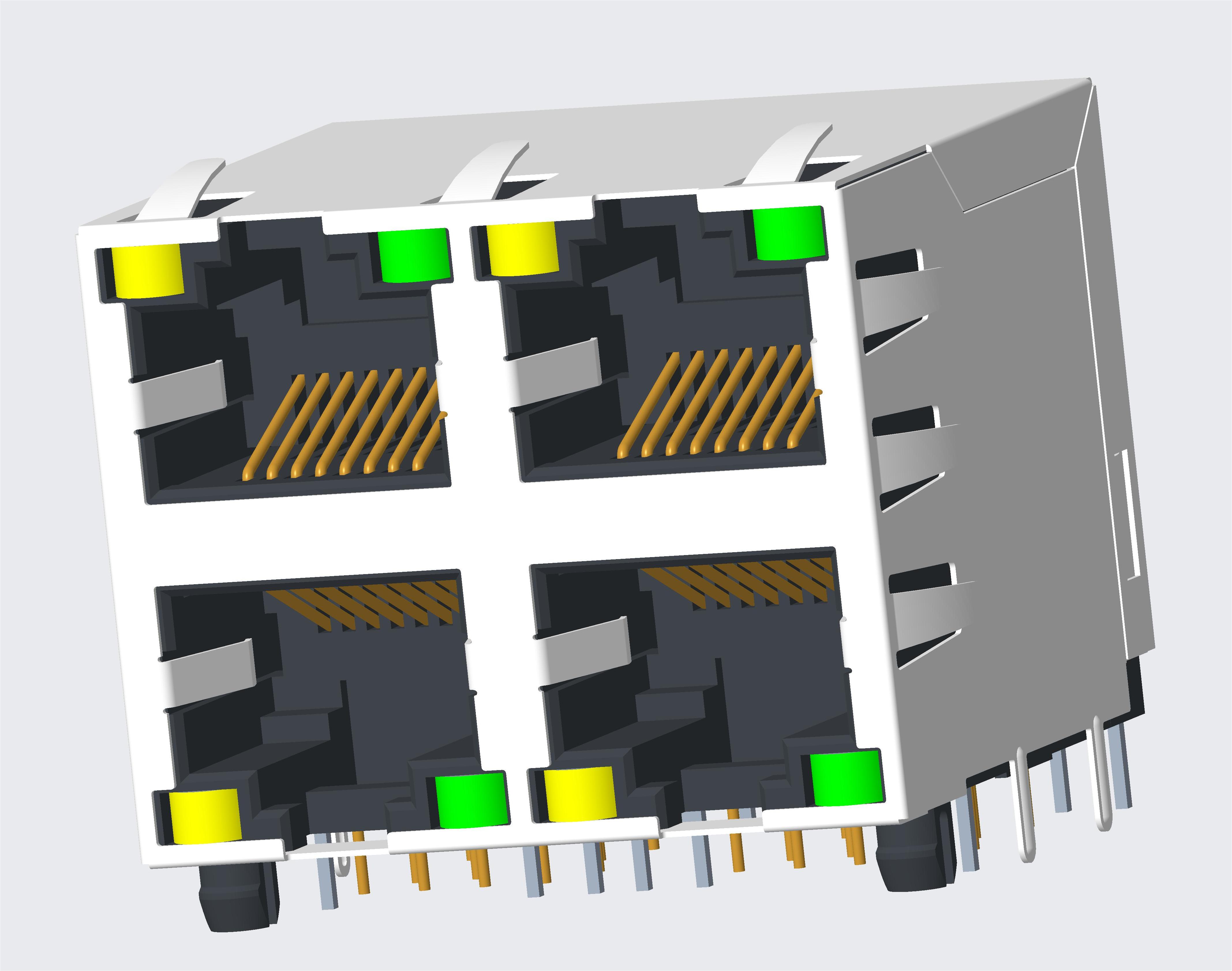

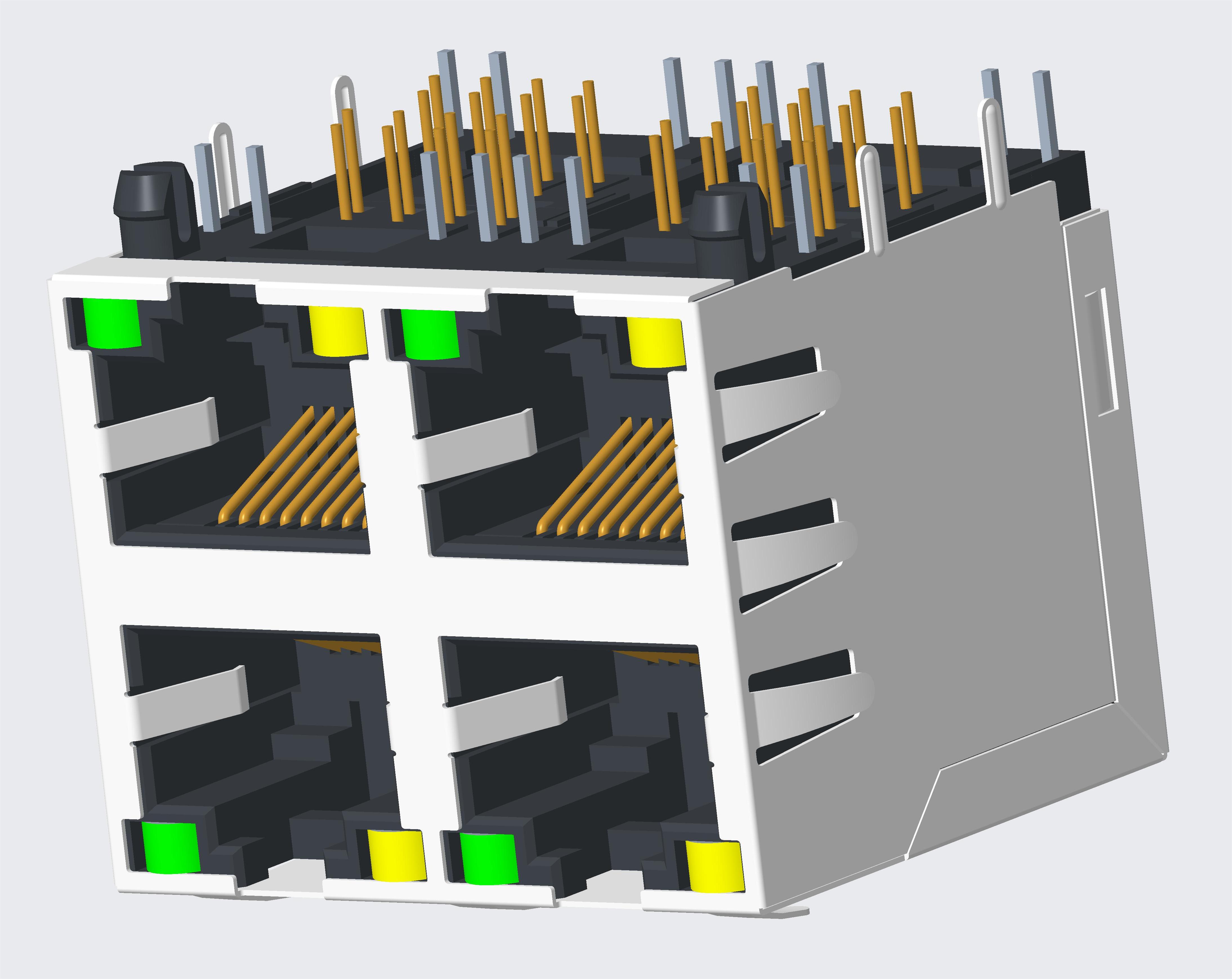

RJ45 5921 ; 2X2 ports ; With LED ; With metal shield（EMI Fingers） . PCB Retaining Post: hollow(Type B）

Main Specifications
PART NO：JL59212288DB1A1DY1C022短體
MATERIAL:
HOUSING: PBT,UL94V-0,BLACK.
TERMINAL: PHOSPHOR BRONZE ?=0.46MM
                   GOLD PLATING.
SHIELD: C2680,T=0.20MM.20 MIN NICKEL
             PLATING ON ALL AREA.
MACHANICAL:
DURABILITY:750 CYCLES MIN.12.5MM/MINUTE
INSERTION FORCE: 2.2KG.F MAX.
RETENTION STRENGTH : 7.7KG.F BETWEEN JACK AND PLUG
OPERATING TEMPERATURE:-40℃~+85℃
STORAGE TEMPERATURE:-40°C~+85°
ELECTRICAL:
VOLTAGE: 125 VOLTS AC.
CURRENT RATING :1.5AMP
DIELECTRIC STRENGTH: 1000 VAC RMS 50HZ OR 60HZ.1MIN
INSULATION RESISTANCE: 500 MEGA OHMS MIN.
INITIAL AFTER 500V DC FOR 1 MINUTE
CONTACT RESISTANCE: SINGLE TERMINAL 30 MILLIOHMS
MAX  INITIAL 50 MILLIOHMS MAX. AFTER DURABILITY TEST.
