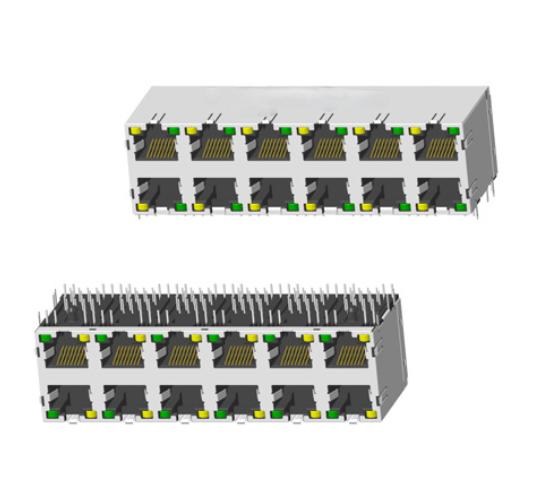

RJ45 5921 ; 2X6 ports ; With LED ; With metal shield（EMI Fingers） ;Meets IEEE 802.3 specification.(Long body)

Main Specifications:

PART NO.: JL59212688DB1A1DY1B022長體

Connector type：RJ45 5921

Number of Ports：2X6 ports

Integrated transformer：No.

Turns Ratio RX：No.

Main electrical parameters：Open/Short test pass.

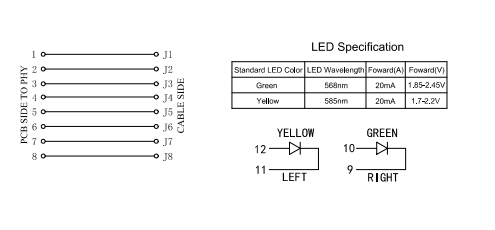

LED option：Yes, L-Yellow / R-Green

Contact Mating Area Plating：

Gold G/F / 0.8u''/ 1u''/ 1.5u''/ 3u''/ 6u''/ 15u''/ 30u''/ 50u''

Shield EMI Tabs：Yes.

Working temperature：

0 - 85 degree Celsius or -40 - 85 degree Celsius.

Storage temperature：-40 - 85 degree Celsius

Suitable for welding type ：

Wave-soldering(Normal) or Reflowsolding(Alternative).

Product standard：Meets IEEE 802.3 specification.

RoHS Compliant：Yes.

REACH Compliant：Yes.

Quality as surance：

Electrical performance and Led 200% test passed.
