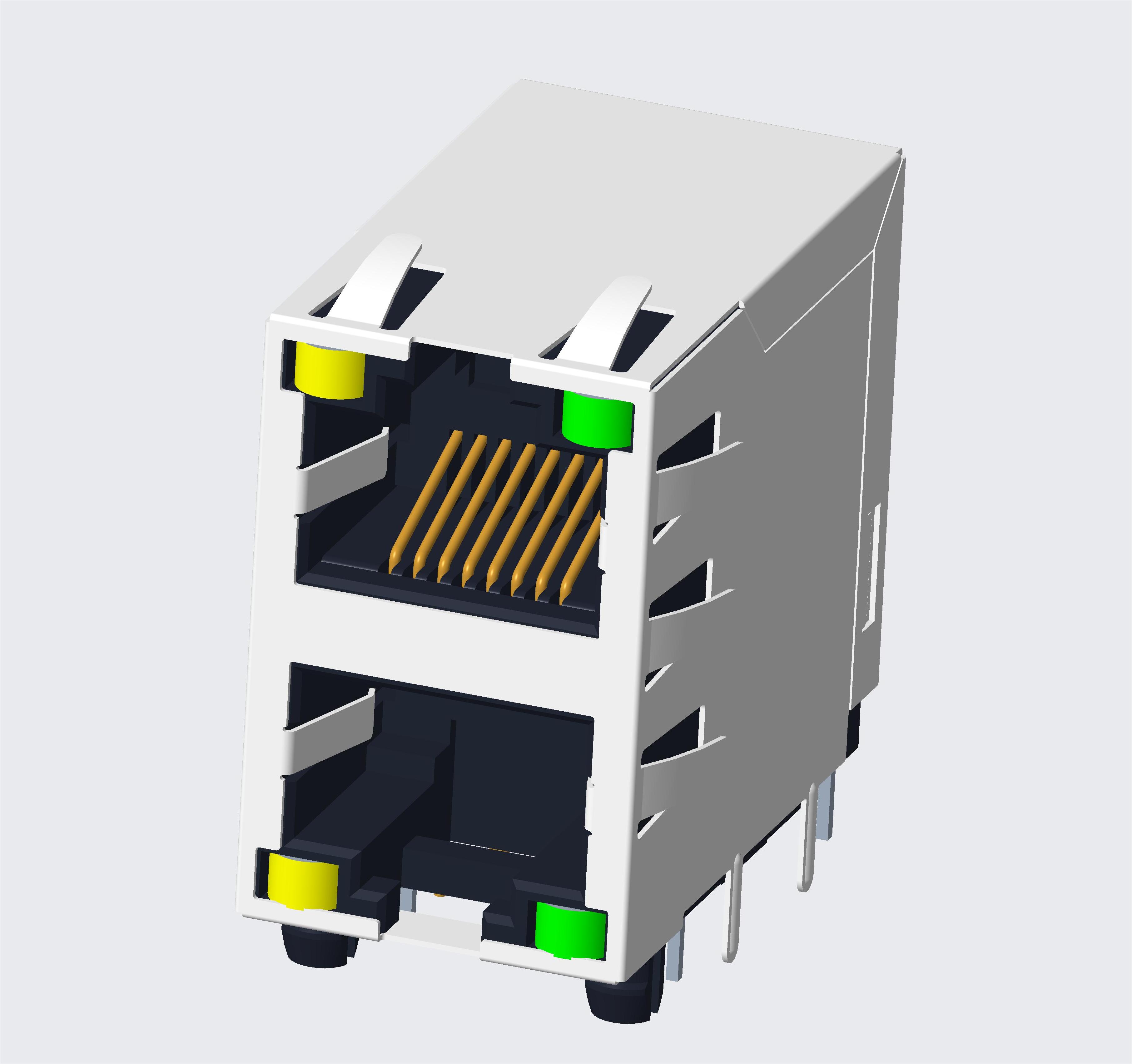

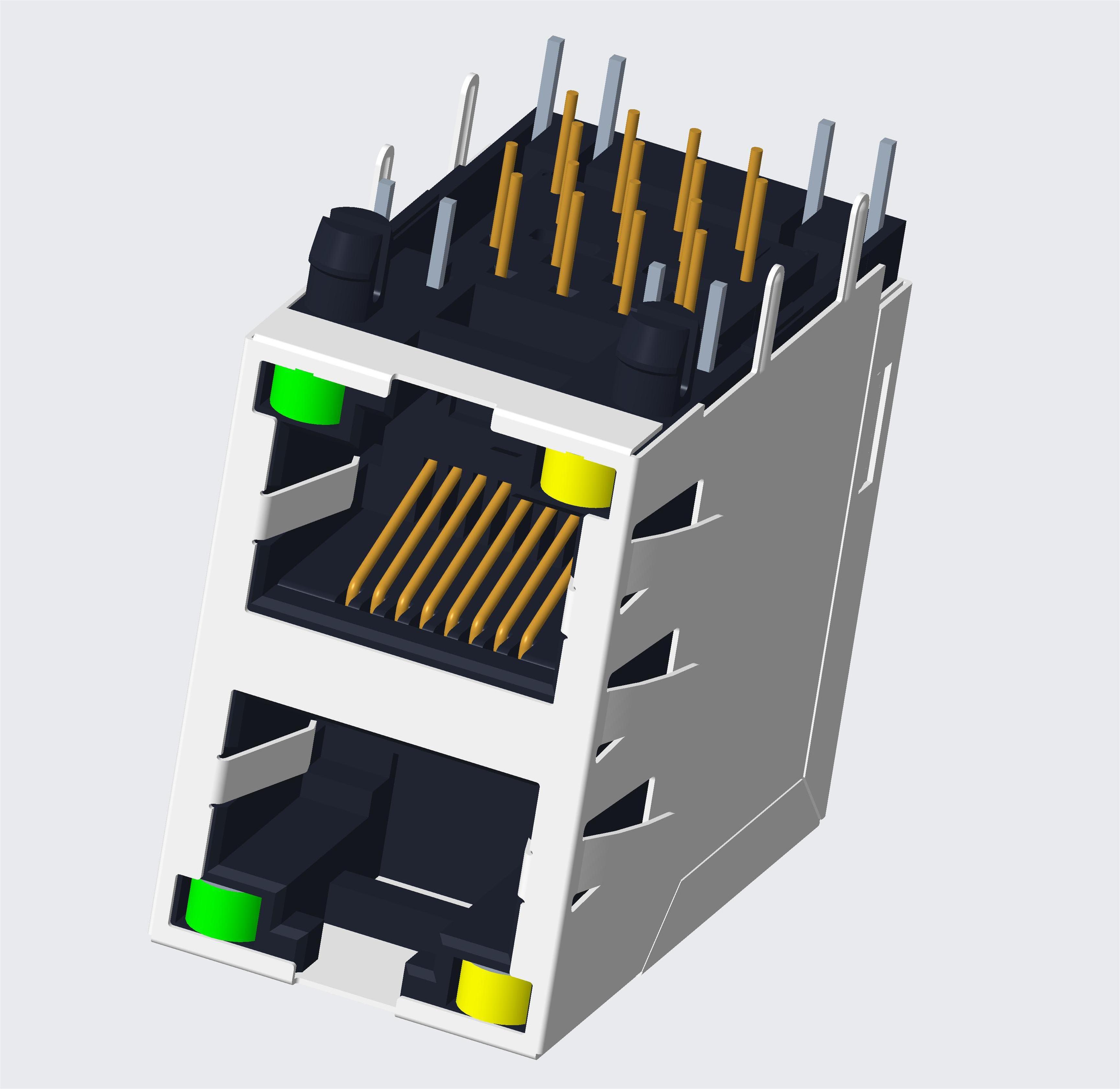

RJ45 5921 ; 2X1 ports ; With LED ; With metal shield（EMI Fingers） . PCB Retaining Post: hollow(Type B）

Main Specifications
PART NO：JL59212188DB1A1DY1C022短體
MACHANICAL:

DURABILITY:750 CYCLES MIN.12.5MM/MINUTE

INSERTION FORCE: 2.2KG.F MAX.

RETENTION STRENGTH : 7.7KG.F BETWEEN JACK AND PLUG

OPERATING TEMPERATURE:-40℃~+85℃

STORAGE TEMPERATURE:-40°C~+85°

ELECTRICAL:

VOLTAGE: 125 VOLTS AC.

CURRENT RATING :1.5AMP

DIELECTRIC STRENGTH: 1000 VAC RMS 50HZ OR 60HZ.1MIN

INSULATION RESISTANCE: 500 MEGA OHMS MIN. INITIAL

                       AFTER 500V DC FOR 1 MINUTE

CONTACT RESISTANCE: SINGLE TERMINAL 30 MILLIOHMS MAX

                    INITIAL 50 MILLIOHMS MAX. AFTER

                       DURABILITY TEST.
